Bridges Overview

A bridge is a workspace-facing adapter between AGH sessions and a messaging platform. The platform can be Slack, Discord, Telegram, or any installed extension that advertises the bridge.adapter capability. The bridge instance stores the operator-owned configuration; the provider extension owns platform-specific webhook validation, message normalization, and outbound delivery.

That split keeps AGH responsible for sessions, routing, persistence, and delivery bookkeeping while letting each platform adapter speak the platform API directly.

In this section

Routing

Message Routing

How platform identities become stable route keys and durable AGH sessions.

Policy and delivery

Setup

Platform Setup

Configure Slack, Discord, and Telegram bridges with webhook paths, secrets, and routing.

How-to

Runtime model

Object	Owned by	What it does
Provider extension	Extension catalog	Declares `bridge.adapter`, platform name, display name, required secret slots, and provider config schema hints.
Bridge instance	AGH bridge registry	Stores scope, workspace, provider selection, routing policy, delivery defaults, provider config, status, and degradation metadata.
Secret binding	AGH daemon	Maps a provider slot such as `bot_token` to a vault-backed secret reference and stores the write-only secret value encrypted.
Bridge route	AGH routing layer	Maps one canonical platform identity to one AGH session and agent name.
Delivery target	Delivery broker	Identifies where a response should be posted, replied to, edited, or deleted on the platform.

The provider catalog is dynamic. GET /api/bridges/providers returns every installed and enabled extension that provides bridge.adapter. In this repository, the catalog includes provider manifests for Slack, Discord, Telegram, WhatsApp, Microsoft Teams, Google Chat, GitHub, and Linear. This setup guide covers Slack, Discord, and Telegram because those are the supported walkthroughs for this section.

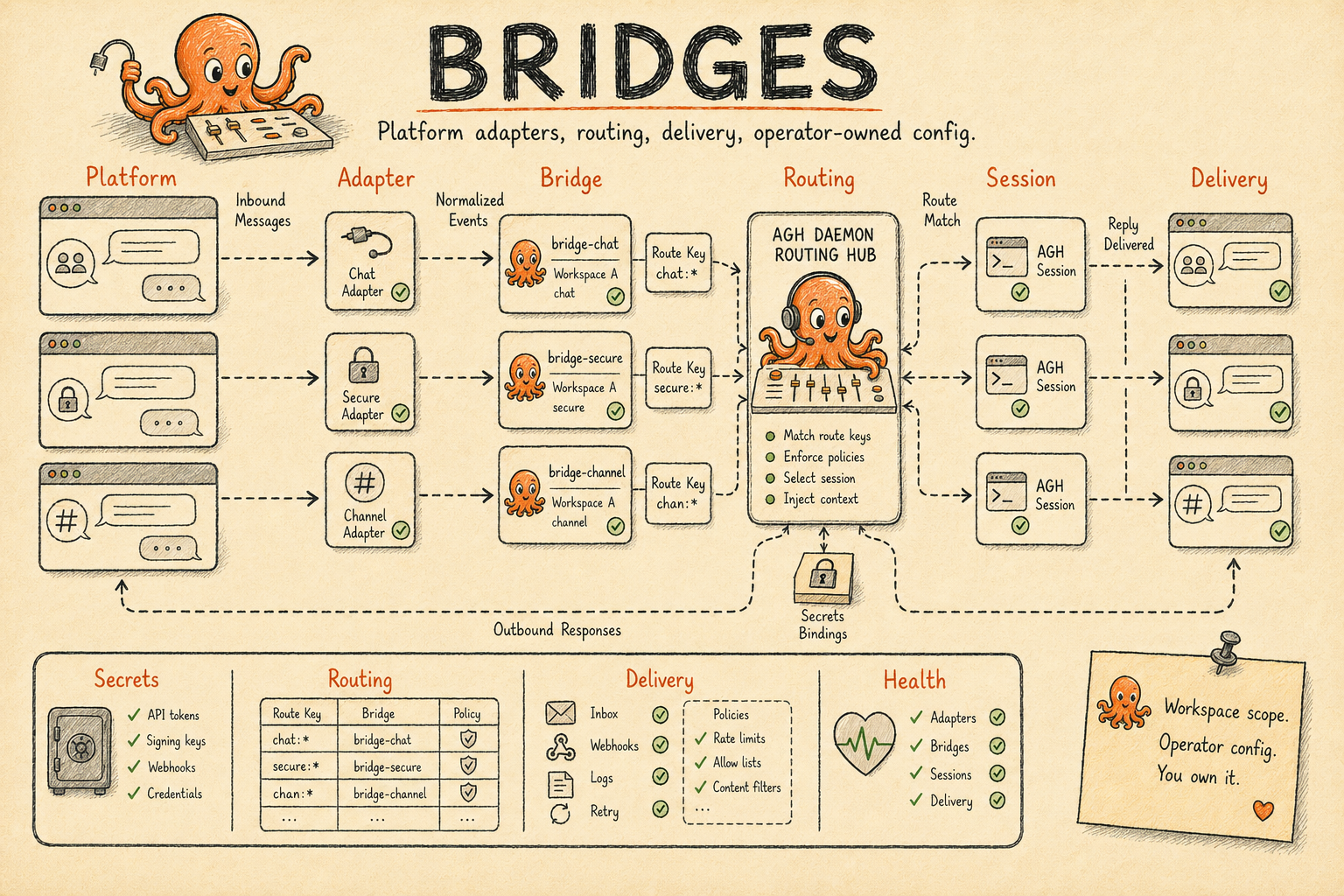

Message flow

Rendering diagram...

An inbound platform event is normalized by the adapter, routed to an AGH session, and streamed back through the delivery broker to the same platform.

Adapter architecture

The bridge adapter runs as an extension subprocess. During initialization, AGH gives it the bridge instances assigned to that extension and a Host API surface. The adapter then:

Resolves bridge secret bindings from the daemon-provided cache.
Starts webhook listeners for configured bridge instances.
Verifies incoming platform requests before ingestion.
Converts platform payloads into normalized bridge envelopes.
Reports bridge state back to AGH as ready, degraded, auth_required, or error.
Delivers response events back to the platform API and acknowledges delivery to AGH.

AGH does not parse Slack, Discord, or Telegram webhook payloads in the daemon. The daemon accepts the normalized envelope only after the provider extension authenticates itself and the bridge instance is enabled for that extension.

Bridge instance format

Bridge instances are persisted runtime records. They are created through the bridge API or the agh bridge create command, not through config.toml.

{
  "scope": "workspace",
  "workspace_id": "ws_8f33a913d23c4fd1",
  "platform": "slack",
  "extension_name": "slack",
  "display_name": "Slack support",
  "enabled": false,
  "status": "disabled",
  "dm_policy": "allowlist",
  "routing_policy": {
    "include_peer": false,
    "include_thread": true,
    "include_group": true
  },
  "provider_config": {
    "webhook": {
      "listen_addr": "127.0.0.1:18081",
      "path": "/slack/support"
    },
    "dm": {
      "allow_user_ids": ["U0123456789"]
    }
  },
  "delivery_defaults": {
    "group_id": "C0123456789",
    "thread_id": "1713200000.000100",
    "mode": "direct-send"
  }
}

Field	Required	Notes
`scope`	yes	`workspace` or `global`. Use `workspace` for inbound sessions.
`workspace_id`	workspace only	Required when `scope` is `workspace`; forbidden for `global`.
`platform`	yes	Platform identifier such as `slack`, `discord`, or `telegram`.
`extension_name`	yes	Installed extension that owns the provider, usually the same as the platform.
`display_name`	yes	Operator-facing name shown by CLI/API output.
`enabled`	yes	Disabled instances do not accept routing work. Create disabled, bind secrets, then enable.
`status`	yes	`disabled`, `starting`, `ready`, `degraded`, `auth_required`, or `error`.
`dm_policy`	no	`open`, `allowlist`, or `pairing`; empty normalizes to `open`. Providers enforce this against their `dm` config.
`routing_policy`	yes	Chooses which platform identity dimensions join the canonical route key.
`provider_config`	no	Provider-owned JSON object. The transport accepts any JSON object or `null`; each adapter validates the keys it uses.
`delivery_defaults`	no	JSON object with `peer_id`, `thread_id`, `group_id`, and `mode`. `thread_id` requires `peer_id` or `group_id`.

Package-managed instances can be created by extension bundles. Those records report source: "package" and reject direct spec mutation through the generic update API.

Supported provider slots

Provider	Required secrets	Optional secrets	Webhook auth
Slack	`bot_token`, `signing_secret`	none	Slack request signing secret.
Discord	`bot_token`, `public_key`	none	Discord Ed25519 interaction signature headers.
Telegram	`bot_token`	`webhook_secret`	Telegram `X-Telegram-Bot-Api-Secret-Token` header when configured.

Bind each slot to an AGH-managed vault secret before enabling the bridge. The API accepts the plaintext only through the write-only secret_value field and never returns it:

curl -X PUT http://localhost:2123/api/bridges/brg_123/secret-bindings/bot_token \
  -H "Content-Type: application/json" \
  -d '{"secret_ref":"vault:bridges/brg_123/bot_token","secret_value":"xoxb-...","kind":"token"}'

The reference must be scoped to the edited bridge: vault:bridges/<bridge>/<slot>. Restart or enable the bridge after changing a binding so the provider receives fresh launch material.

Bridge Vault refs are visible as redacted metadata through Settings > Vault, agh vault list --namespace bridges, and /api/vault/secrets?namespace=bridges. The plaintext secret_value is accepted only on write.

Operational states

Status	Meaning	Ingest behavior
`disabled`	Operator disabled the instance.	Rejected as unavailable.
`starting`	Extension is launching, restarting, or reconnecting.	Rejected until the provider reports readiness.
`ready`	Provider is healthy and can ingest and deliver.	Accepted.
`degraded`	Provider can still work but reported a known issue.	Accepted; health payload includes the degradation reason.
`auth_required`	Required credential or platform authorization is missing or invalid.	Rejected until fixed and restarted.
`error`	Provider reached a terminal or repeated fault.	Rejected until restarted or repaired.

Bridge health is exposed with each bridge payload and through the bridge health stream. It includes route count, delivery backlog, dropped delivery count, delivery failures, auth failures, last success, last error, and degradation metadata.
